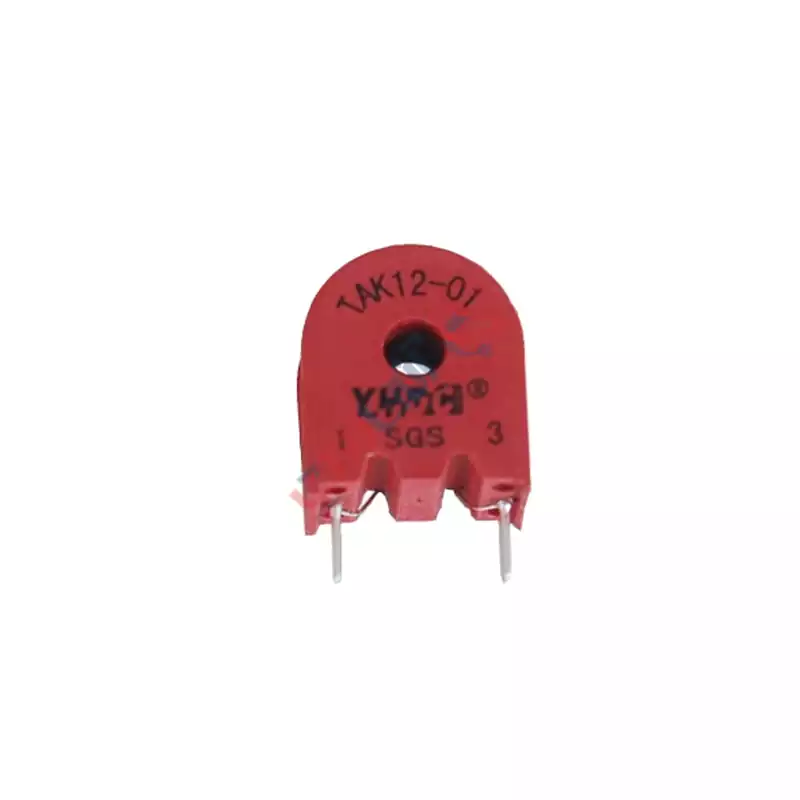

TAK12-01

Model:TAK12-01

Characteristics:

 Used for high-frequency impulse current detecting and

 switching power circuit protecting.

Technical index:

 Mounting type：PCB

 Material of the core：Ferrite

 Flame resistance：UL94-V0

 Execution standard：GB1208-2006

 Operating temperature：-35℃～+85℃

 Storage temperature：-45℃～+95℃

 Frequency range：2KHz-500KHz

 Dielectric strength：3.5KV 50Hz 1min
