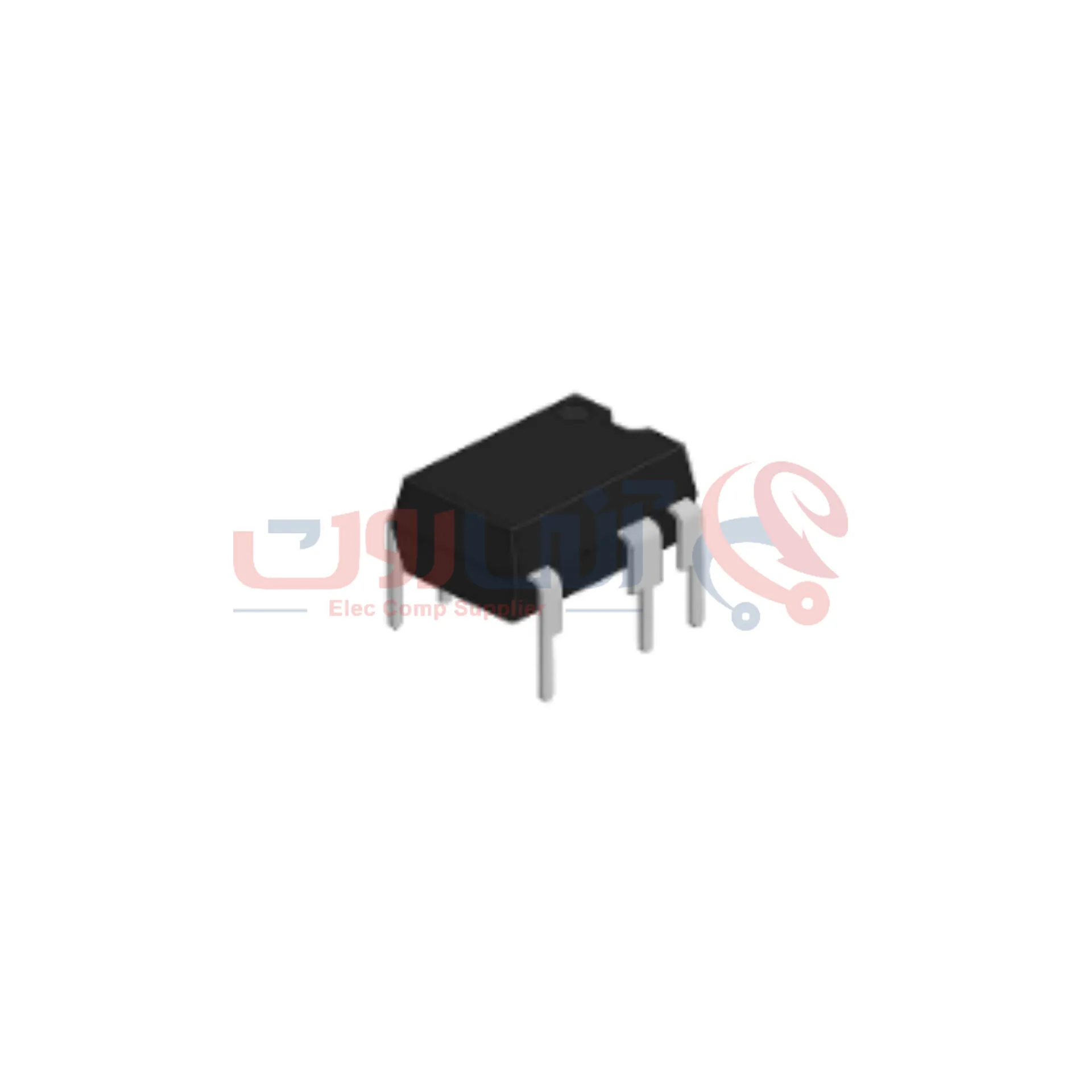

آی سی STR-A6053M

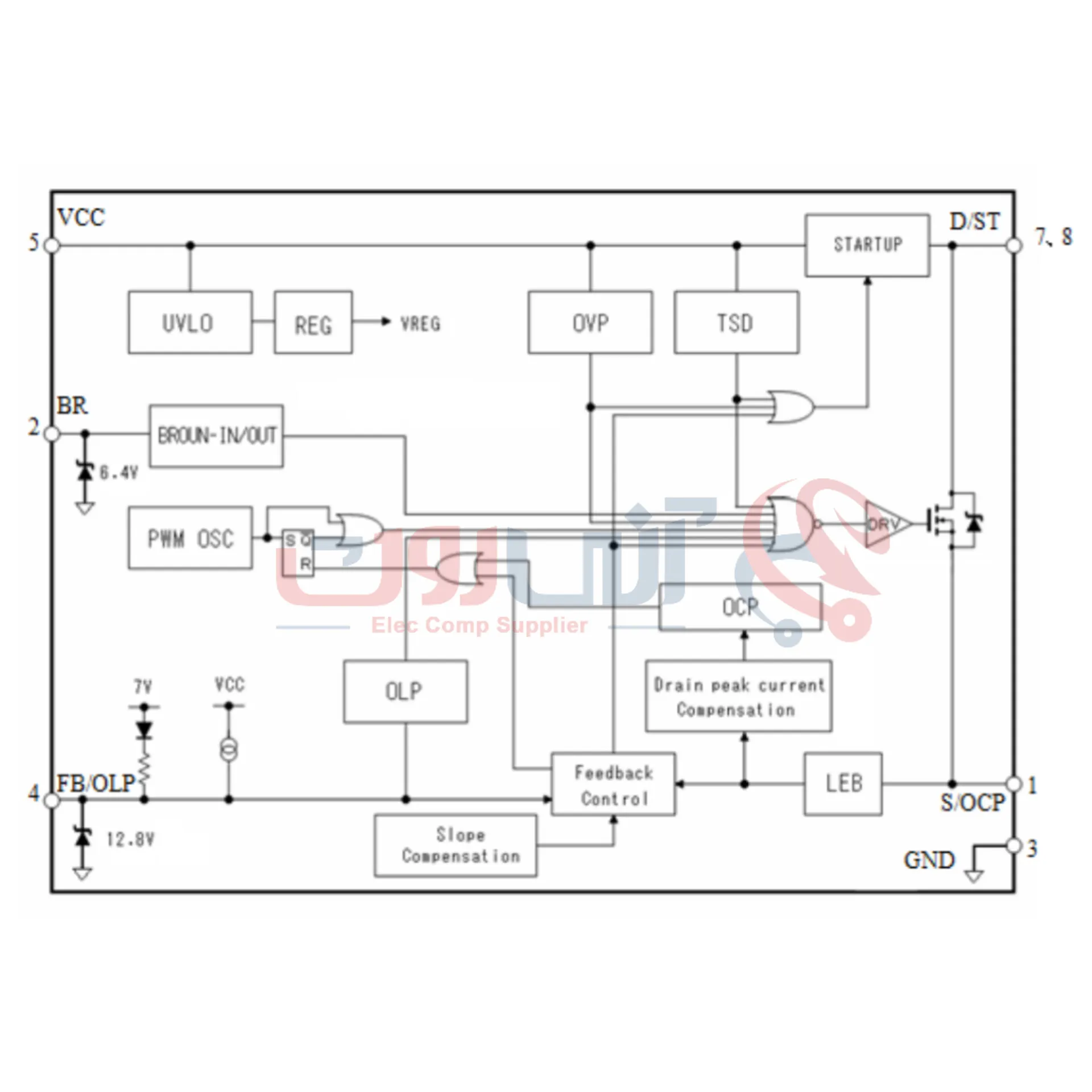

The STR-A6000 series are power ICs for switching power supplies, incorporating a power MOSFET and a currentmode PWM controll IC in one package.
To achieve low power consumption, the product includes a startup circuit and a standby function in the controller.
The switching modes are automatically changed according to load conditions so that the PWM mode is in normal operation and the burst mode is in light load condition.
Rich set of protection features help realize low component count, and high performance-to-cost power supply.

Features

• ・Current mode PWM control
• ・Brown-in and brown-out function
• ・Auto standby function
• 　Normal load operation: PWM mode
• 　Light load operation: Burst mode
• ・No load power consumption PIN < 25 mW
• ・Random Switching function
• ・Slope Compensation function
• ・Leading Edge Blanking function
• ・Audible noise suppression function during standby mode
• ・Protection features
• 　Overcurrent protection function (OCP): pulse by pulse,with input compensation function
• 　Overvoltage protection function (OVP): latch shutdown
• 　Overload protection function (OLP)：auto restart, with timer

　Thermal shutdown protection (TSD): latch shutdown
