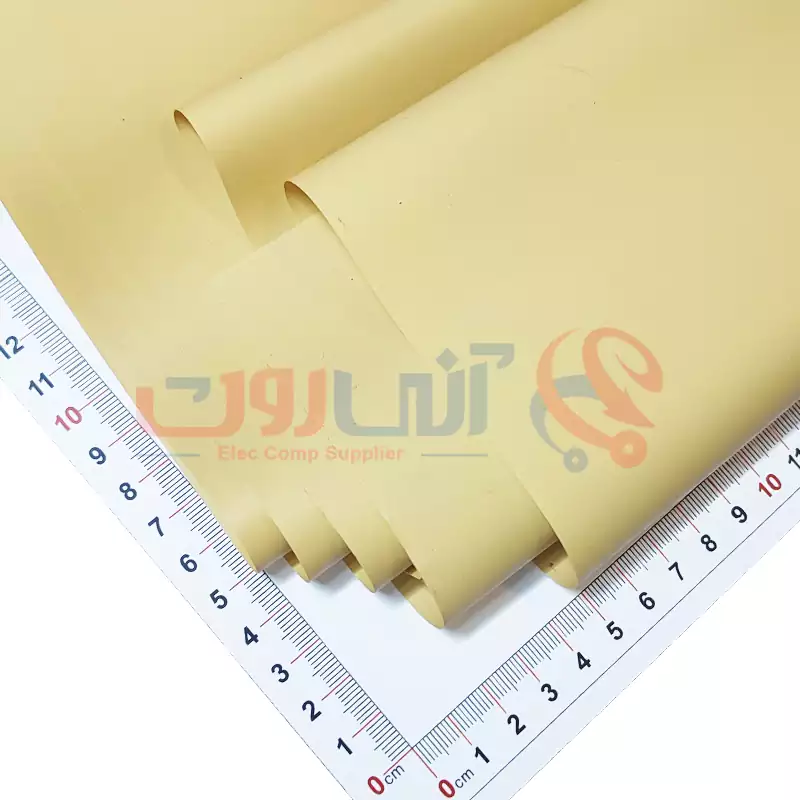

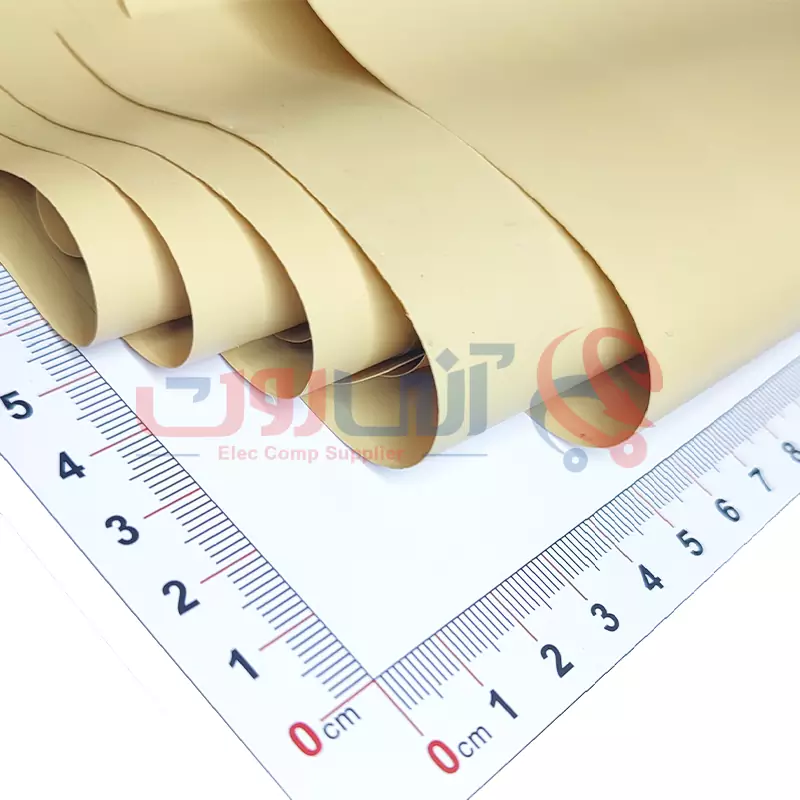

BM-K10 عایق سیلیکون عرض ۳۰ سانتی متر – ضخامت 0.16mm

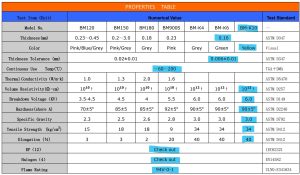

Main Features :

Model Number : BM-K10

Material : Silicone

Type : Thermal Conductivity : 1.5W/m-k

Thickness : 0.16mm

Breakdown Voltage : 6KV

Hardness (shore A) : 90

Tensible Strength : 34kg/cm2

Certificate : RoHS/REACH/ISO 9001

Related Keywords : Sil pad , Insulator Pad , Insulator silicone sheet , Thermal sheet , Insulator Silicone Pad

Description

BM-K series Insulator silicone Sheet is based upon fiberglass and polyimide as raw materials,also known as thermal conductive silicone cloth,tearing resistant silicone sheet. This material can effectively reduce thermal resistance between the electronic componentand the heat sink,and with good electrical insulation, high dielectric strength, good thermal conductivity performance.It can resist high voltage and metal parts pierced problem lead to a short circuit, it’s a good thermal insulation material to replace the traditional mica and silicone grease. It has soft surface, good thermal conductivity and toughness tear resistance, high dielectric strength, strong wear resistance,high breakdown voltage,no viscosity on the surface, suitable for the insulation and thermal conductive of power device.

Applications:

1.Large power source and automobile electronic heating module.

2.Motor control, communication equipment.

3.Power semiconductor, IS MOS tube IGBT chip.

4.High voltage , high temperature , high power welding machine etc.

5.Military, aviation.

6.Heating power device.

FEATURES:

1. Soft surface
2. Low thermal resistance
3. Tear and puncture resistant
4. High dielectric strength
5. High breakdown voltage
6. Thermal conductive and electrical insulation
7. Low mounting pressure, easy to die cutting
8. Non-pollution, compliant with RoHS,REACH.

Specification:

Sheet, die-cutting, roll, with adhesive and without adhesive are available.

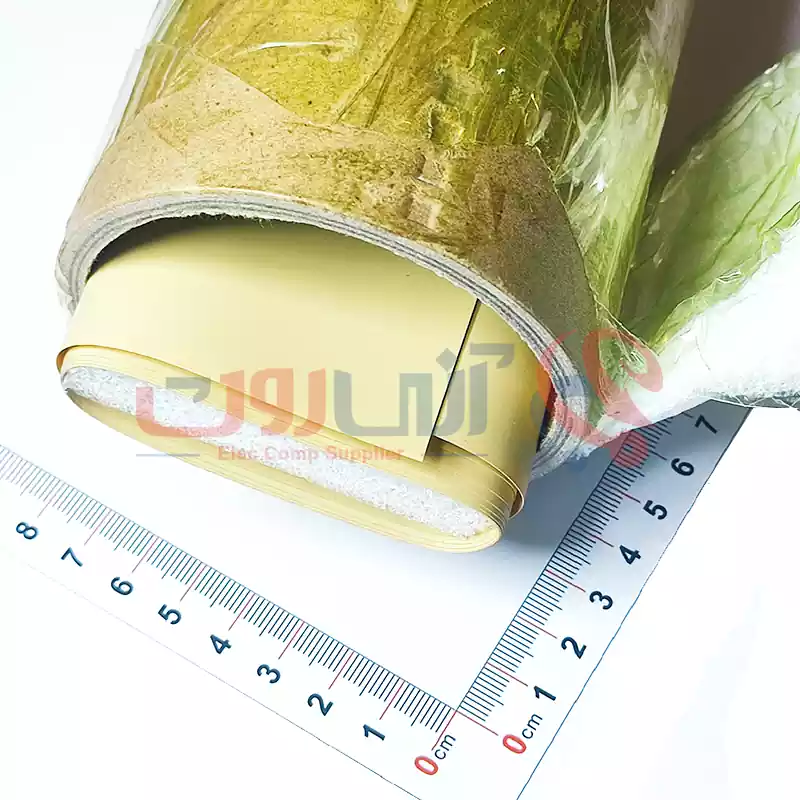

Regular size : 300mmx50m(roll)

According to customer requirements can be processed into different sheet form.
