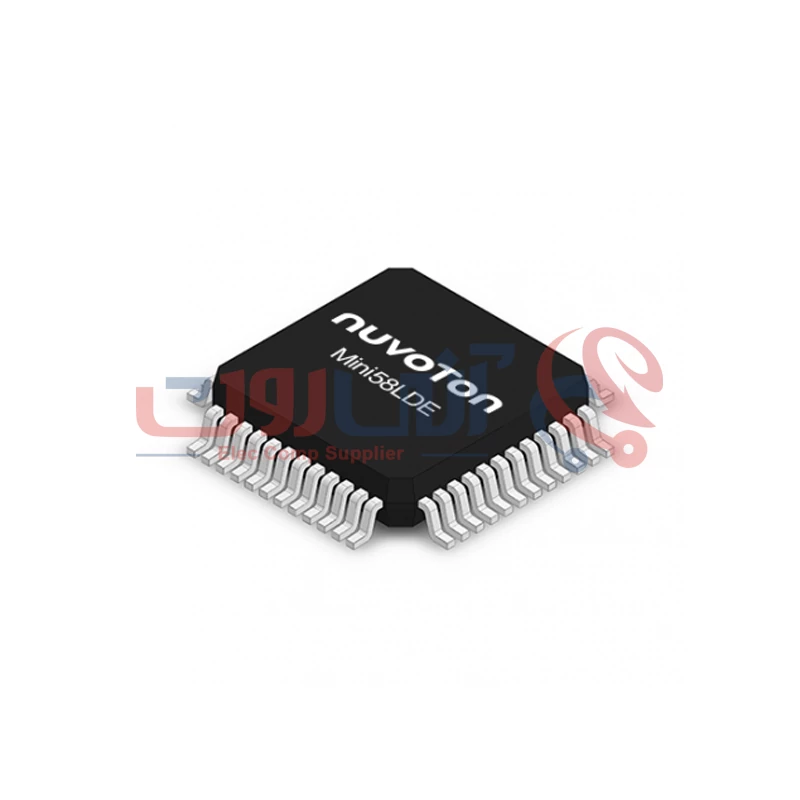

میکروکنترلر NUVOTON MINI58LDE
442,000 تومان
15 عدد در انبار
توضیحات
The NuMicro® Mini58 series embedded with the ARM® Cortex®-M0 core runs up to 50 MHz with 32 Kbytes Flash program memory, 4 Kbytes SRAM and 2 Kbytes Flash loader memory for In-System Programming (ISP). The Mini58 series is equipped with a variety of peripherals, such as GPIOs, Timers, UART, SPI, I2C, PWM, ADC, Comparator, Watchdog Timer (WDT), Low Voltage Reset, Brown-out Detected Reset, and supports 96-bit Unique ID and 128-bit Unique Customer ID.
Target Application:
Consumer , Industrial Control, Communication System, etc.
Key Features:
| • | Core | ||
| – | Cortex-M0 processor | ||
| – | Max frequency of 50 MHz | ||
| – | Operating voltage: 2.5V to 5.5V | ||
| – | Temperature range: – 40~105 ℃ | ||
| • | Memory | ||
| – | 32 KB flash for program memory | ||
| – | Provide 4 KB SRAM | ||
| – | Configurable Data Flash | ||
| – | Support ISP ( In-System Programming ) | ||
| – | Support ICP ( In-Circuit Programming ) | ||
| – | Support IAP ( In-Application Programming | ||
| • | ADC | ||
| – | Up to 8 channels | ||
| – | 10-bit resolution | ||
| • | PWM | ||
| – | Up to 6 channel PWM or 3 complementary paired PWM outputs | ||
| – | Period/duty trigger ADC function | ||
| • | Comparator x 2 | ||
| • | Connectivity | ||
| – | Up to one SPI s ( up to 36 MHz ) | ||
| – | Up to two I²C s ( up to 400 kHz ) | ||
| – | Up to two UART s ( up to 1 Mbps ) | ||
| • | Clock Control | ||
| – | 4 to 24 MHz crystal oscillator | ||
| – | Internal 22.1184 MHz ( 1 % accuracy at 25 ℃ , 5V ) | ||
