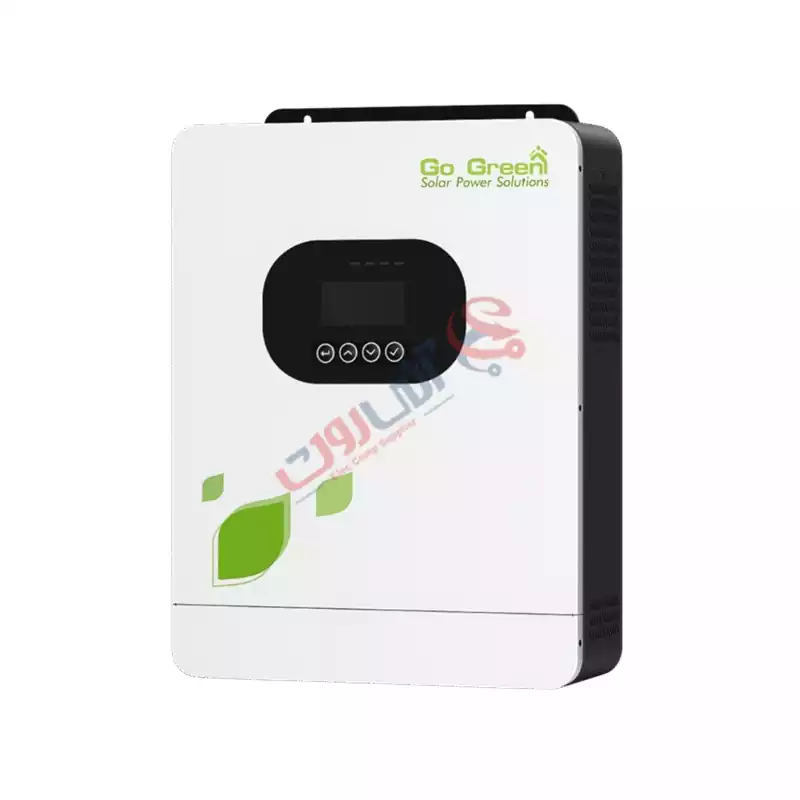

Name: سانورتر 4 کیلووات 24 ولت سینوسی - GGIV4000 - آنی روت
SKU: 75AA_RR-1
Price: 70310000 IRT
Availability: InStock

سانورتر 4 کیلووات 24 ولت سینوسی – GGIV4000

70,310,000 تومان

Intelligent, high-performance MPPT inverter for single-phase solar setups with smooth backup transition and smart energy control.

حمل و نقل این محصول، فقط به روش تیپاکس می باشد. در زمان ثبت سفارش به این موضوع دقت بفرمایید.

وزن

7.5 کیلوگرم

3 عدد در انبار

Category	Specification
Product Name	GGIV 4000 Single Phase MPPT Inverter
AC Input – Rated Voltage	208 / 220 / 230 / 240; L + N + PE
AC Input – Voltage Range	90~280±3 (normal mode); 170~280±3 (UPS mode)
AC Input – Frequency	50 / 60 Hz (Auto Adaptive)
AC Output – Rated Capacity	4.0 kVA
AC Output – Peak Power	7.2 kVA
AC Output – Voltage	208 / 220 / 230 / 240
AC Output – Power Factor	1
AC Output – Frequency	50 / 60 Hz ±0.1%
AC Output – Switch Time	10 ms (normal mode) / 10 ms (UPS mode)
AC Output – Waveform	Pure Sine Wave
Overload Capacity (Battery Mode)	60s @102%~110% load; 10s @110%~130% load; 3s @130%~150% load; 0.2s @>150% load
Max. Efficiency (Battery Mode)	92.7% @24VDC
Parallel Quantity	NA
Solar Charger Type	MPPT
Max PV Input Current / Input Power	18A / 5000W
MPPT Range @ Operating Voltage	40~450 VDC
Max PV Open Circuit Voltage	500 VDC
Max PV Charge Current	100 A
Max AC Charge Current	100 A
Max Charge Current (PV + AC)	100 A
Battery Rated Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	30.5 VDC
Battery Type	Lithium and Lead-acid
HMI	LCD
Interface	RS485 / RS232 / USB / Dry Contact
Monitoring	WiFi (Optional)
Ingress Protection	IP21
Operating Temperature	-10°C ~ 50°C
Relative Humidity	5% ~ 95% (Non-condensing)
Storage Temperature	-15°C ~ 60°C
Net Weight	6.4 kg
Dimensions (W × H × D)	490 × 306 × 115 mm (without bracket)
Max. Operating Altitude	4000 m (Derating above 1000 m)

وزن	7.5 کیلوگرم

توضیحات

Category	Specification
Product Name	GGIV 4000 Single Phase MPPT Inverter
AC Input – Rated Voltage	208 / 220 / 230 / 240; L + N + PE
AC Input – Voltage Range	90~280±3 (normal mode); 170~280±3 (UPS mode)
AC Input – Frequency	50 / 60 Hz (Auto Adaptive)
AC Output – Rated Capacity	4.0 kVA
AC Output – Peak Power	7.2 kVA
AC Output – Voltage	208 / 220 / 230 / 240
AC Output – Power Factor	1
AC Output – Frequency	50 / 60 Hz ±0.1%
AC Output – Switch Time	10 ms (normal mode) / 10 ms (UPS mode)
AC Output – Waveform	Pure Sine Wave
Overload Capacity (Battery Mode)	60s @102%~110% load; 10s @110%~130% load; 3s @130%~150% load; 0.2s @>150% load
Max. Efficiency (Battery Mode)	92.7% @24VDC
Parallel Quantity	NA
Solar Charger Type	MPPT
Max PV Input Current / Input Power	18A / 5000W
MPPT Range @ Operating Voltage	40~450 VDC
Max PV Open Circuit Voltage	500 VDC
Max PV Charge Current	100 A
Max AC Charge Current	100 A
Max Charge Current (PV + AC)	100 A
Battery Rated Voltage	24 VDC
Floating Charge Voltage	27 VDC
Overcharge Protection	30.5 VDC
Battery Type	Lithium and Lead-acid
HMI	LCD
Interface	RS485 / RS232 / USB / Dry Contact
Monitoring	WiFi (Optional)
Ingress Protection	IP21
Operating Temperature	-10°C ~ 50°C
Relative Humidity	5% ~ 95% (Non-condensing)
Storage Temperature	-15°C ~ 60°C
Net Weight	6.4 kg
Dimensions (W × H × D)	490 × 306 × 115 mm (without bracket)
Max. Operating Altitude	4000 m (Derating above 1000 m)
