رله فیندر 34.51 به همراه سوکت 93.01

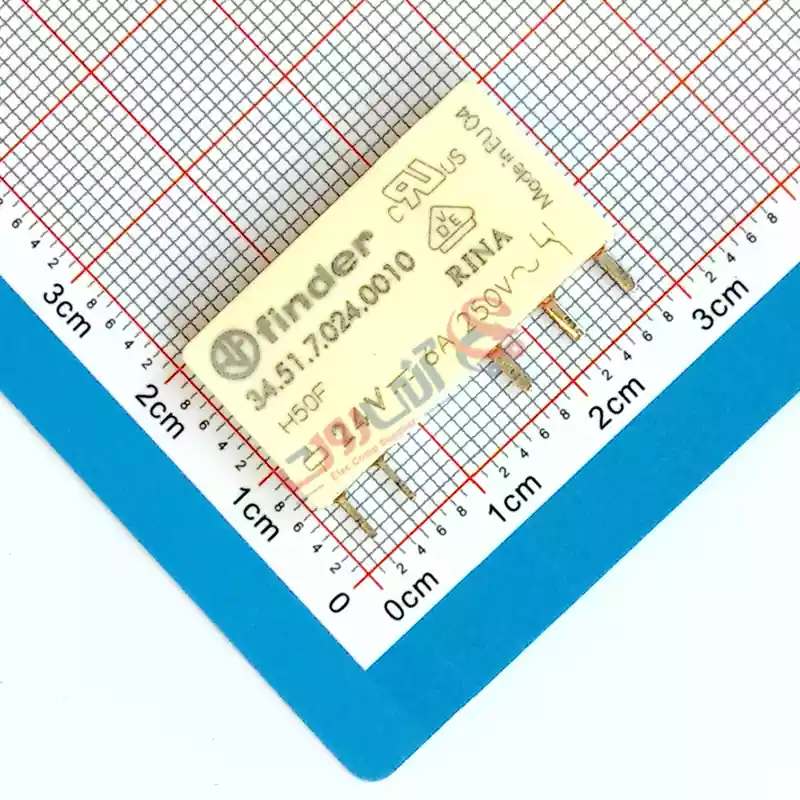

Type 34.51 – Ultra-Slim electromechanical PCB relays 6A

Type 34.51 ultra-slim electromechanical PCB relays, 6 A, 5 mm width, low absorption coil and suitable for PCB mounting or socket mounting using the 93 Series sockets.

Available version 34.51-5010 with contact AgNi+AU.

Features include:

• 1 changeover contact or 1 normally open contact
• Ultra-slim, 5mm wide
• Sensitive DC coil – 170 mW (possibility of AC/DC power supply with 93 Series sockets)
• UL Listing (relay/socket/jumper link)
• Cadmium-free contacts
• 8/8 mm clearance/sliding distance
• 6 kV (1.2/50 μs) insulation between coil and contacts

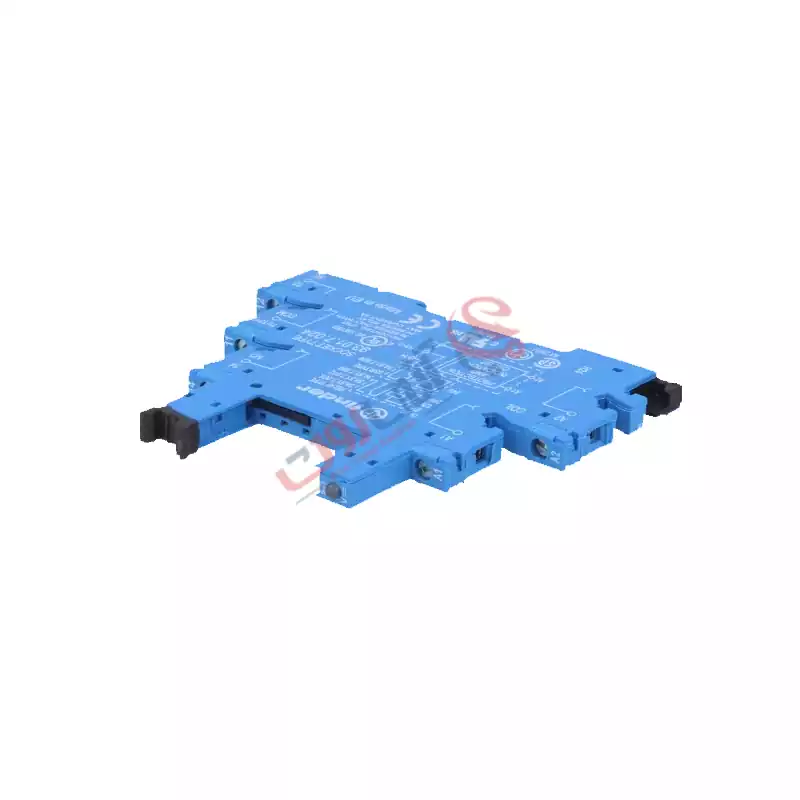

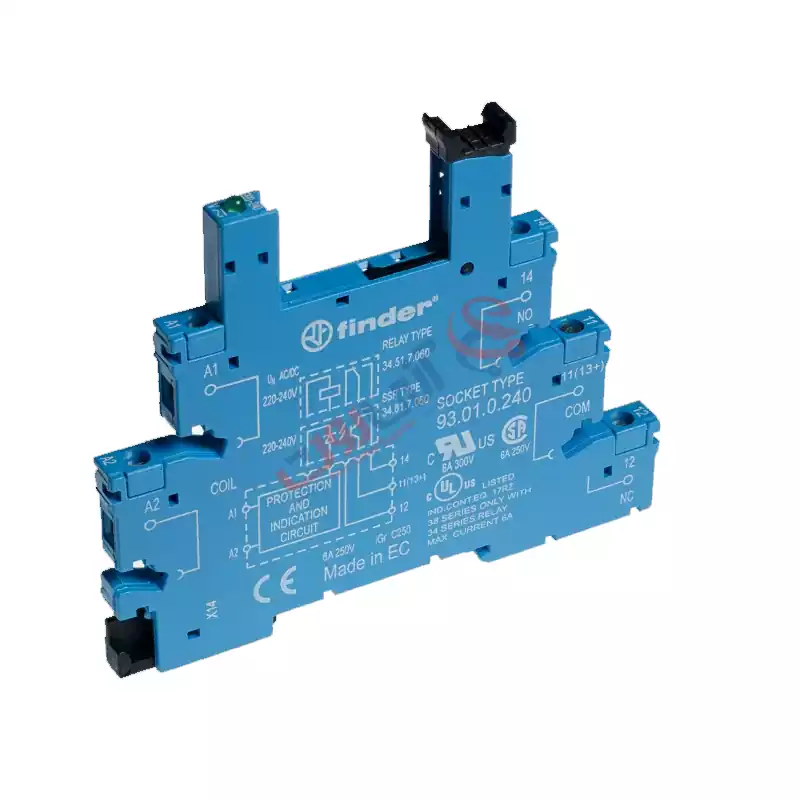

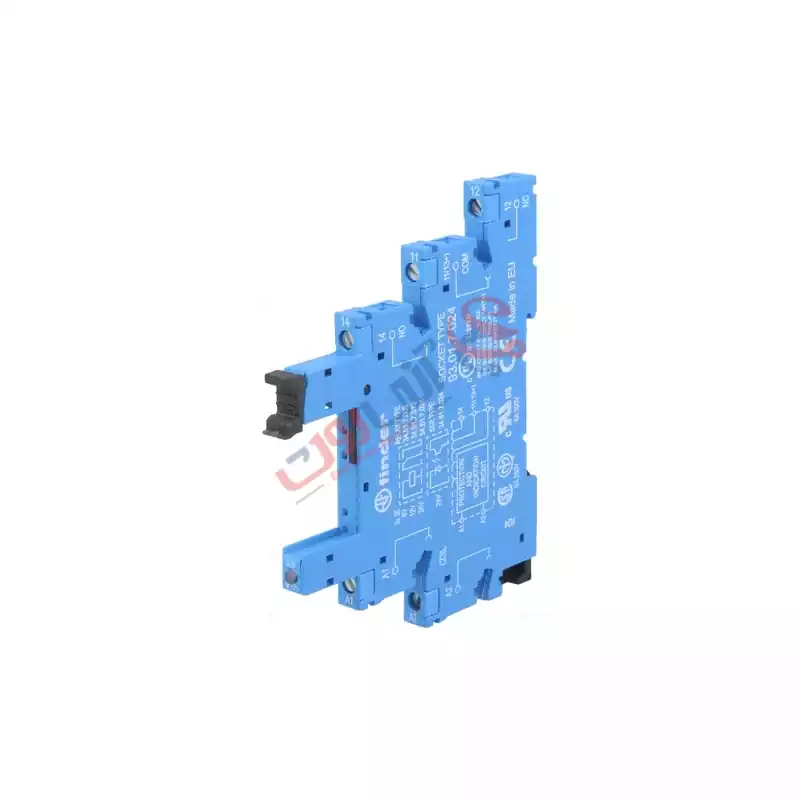

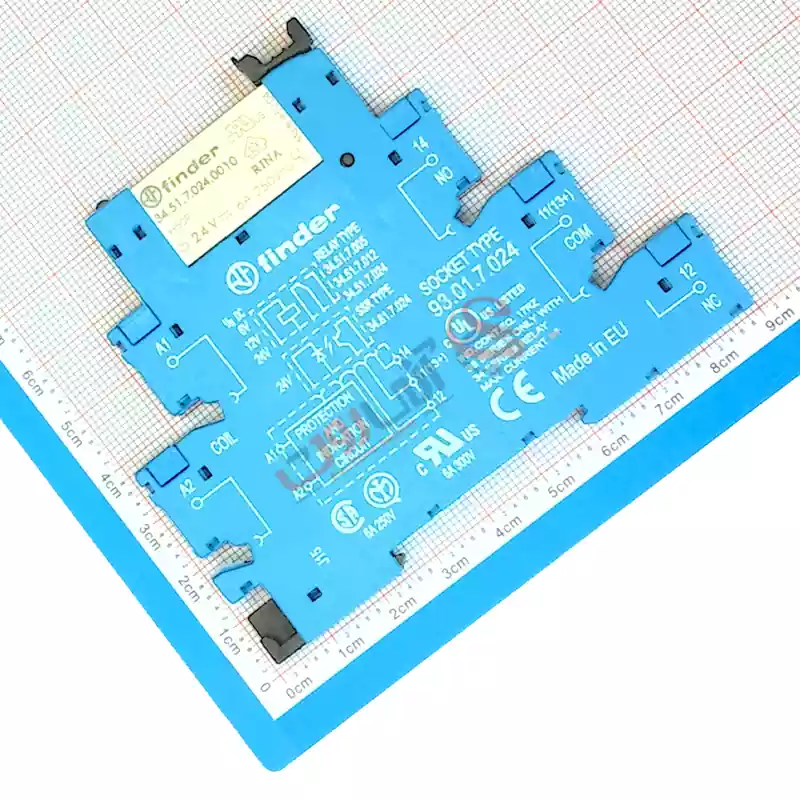

Type 93.01 – screw terminal socket

Manufacturer: FINDER

Function and features:
