آی سی CC2652P74T0RGZR
1,226,000 تومان

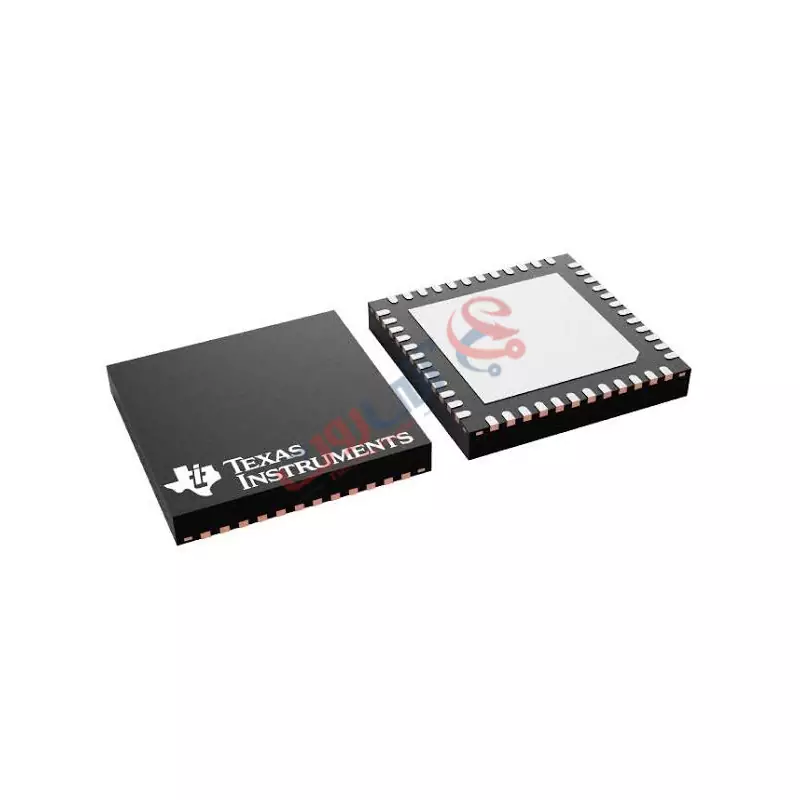

TI CC2652P74T0RGZR – IC RF TXRX + MCU 802.15.4
Bluetooth v5.2, Thread, Zigbee® 2.4GHz 48-VFQFN(7×7)
برای سفارش تماس بگیرید.
Product Description:
The SimpleLink™ CC2652P74T0RGZR device is a multi-protocol 2.4GHz wireless microcontroller (MCU) that supports the following protocols: Thread, Zigbee®, Matter, Low Power Bluetooth® 5.2, IEEE 802.15.4, ipv6-enabled Smart Objects (6LoWPAN), TI 15.4-Stack (2.4GHz) and through Dynamic Multi-Protocol Manager (DMM) The drive implements concurrent multi-protocols. Based on the Arm® Cortex® M4F main processor, the CC2652P7 is optimized for low-power wireless communication and class sensing in grid infrastructure, building automation, retail automation, personal electronics and medical applications.
Device: CC2652P74T0RGZR
Product Category: RF Microcontroller-MCU
Core: ARM Cortex M4F
Operating frequency: 48 MHz
Program memory size: 704 kB
Data RAM size: 144 kB
Max clock frequency: 1 MHz
ADC resolution: 12 bit
Supply voltage – Minimum: 1.8V
Power supply voltage – Max: 3.8V
Operating temperature: -40°C ~ 105°C
Package/box: VQFN-48
Installation style: SMD/SMT
Data Ram type: SRAM
Interface type: GPIO, I2C, SPI, UART
Humidity sensitivity: Yes
Number of ADC channels: 8 channels
Number of input/output terminals: 26 I/ OS
Timer quantity: 4 x 32 bit
Working power supply voltage: 1.8V to 3.8V
Program memory type: Flash
