کانکتور لاستیکی اتصال ال‌سی‌دی Conductive Rubber Connector

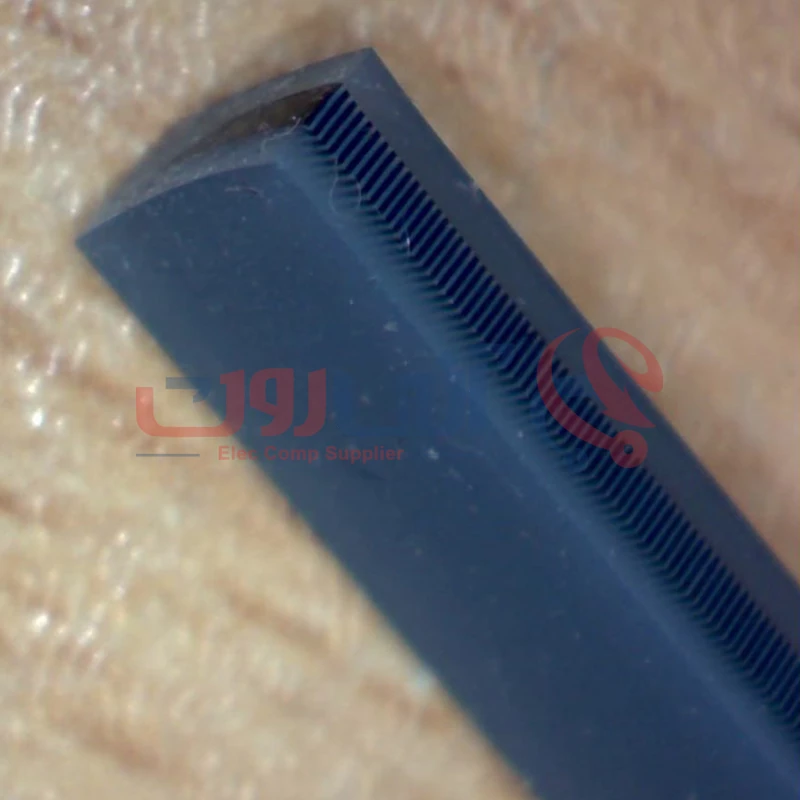

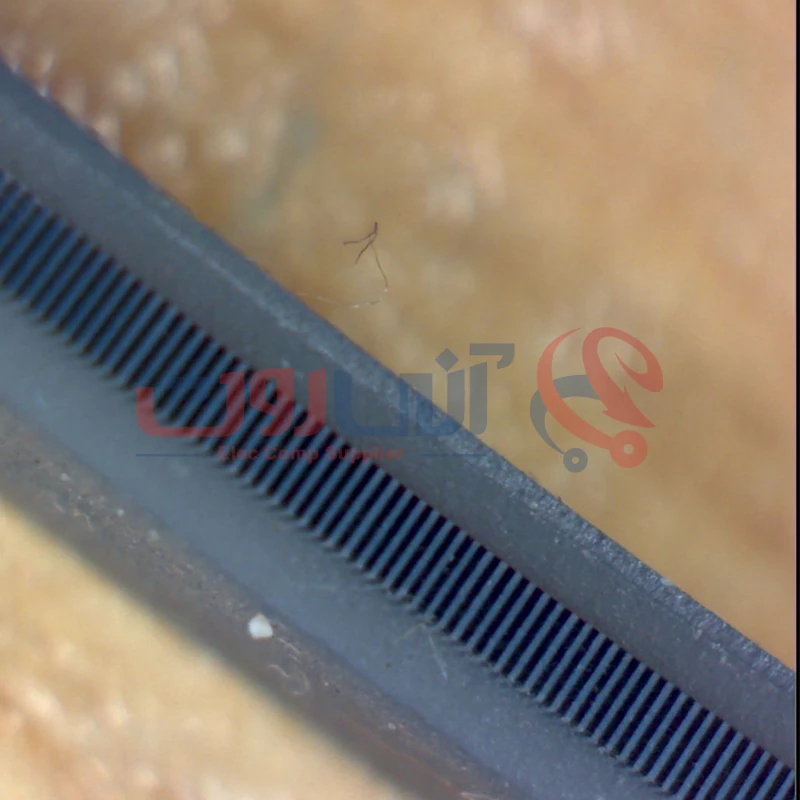

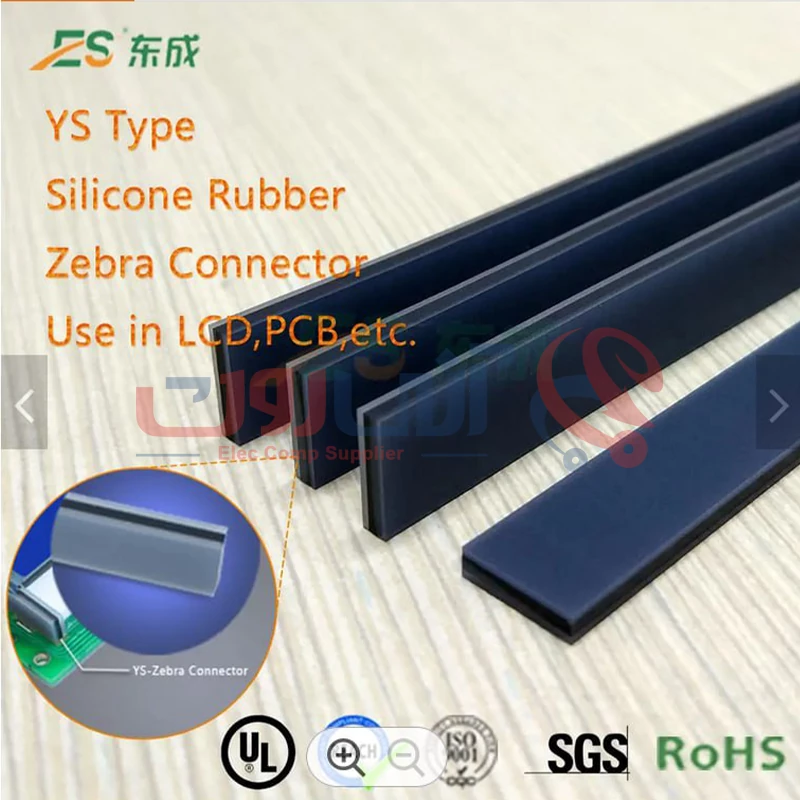

YS Type Conductive Rubber Connector

Specifications：

YS Type Inter-connector consists of alternate layers of conductive and insulating silicone rubber. The insulators are fitted on both sides which is soft. This type is suitable for small or middle-sized displays.
YS type has translucent supportive solid rubber on the both sides.

Applications:

General LCD products such as Calculator, Electronic Toy, Telecommunication, Audio and Visual products, etc.

Features:

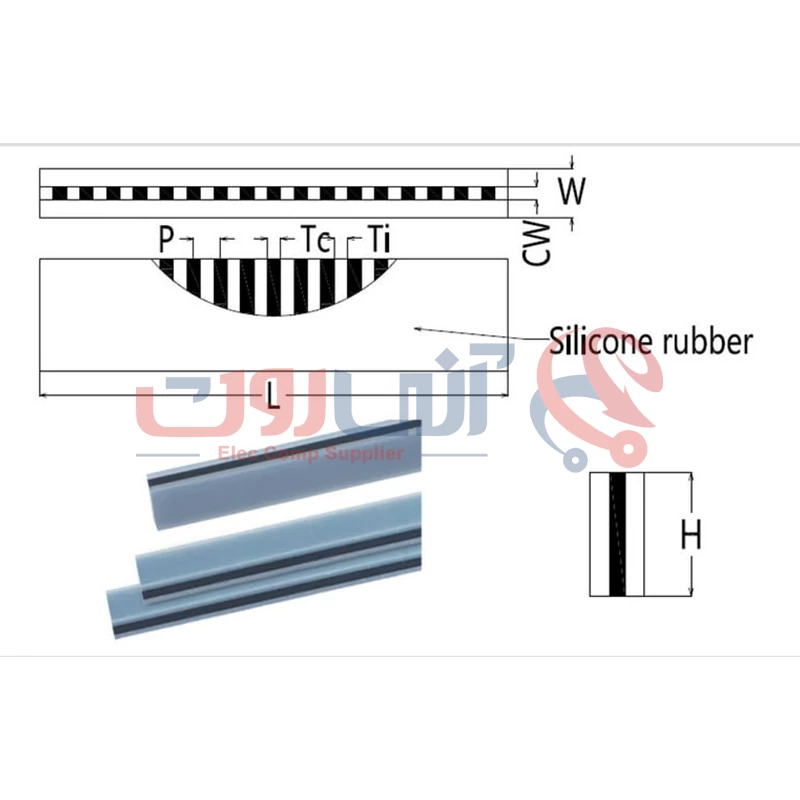

H = 4.6~5mm (ارتفاع)
W = 2.5mm (پهنا)
L = 10cm  (تکه های 10 سانتی
CW = 0.8 ~ 1.0 mm پهنای بخش هادی
Pitch = 0.18 mm فاصله نوار هادی ها از هم
