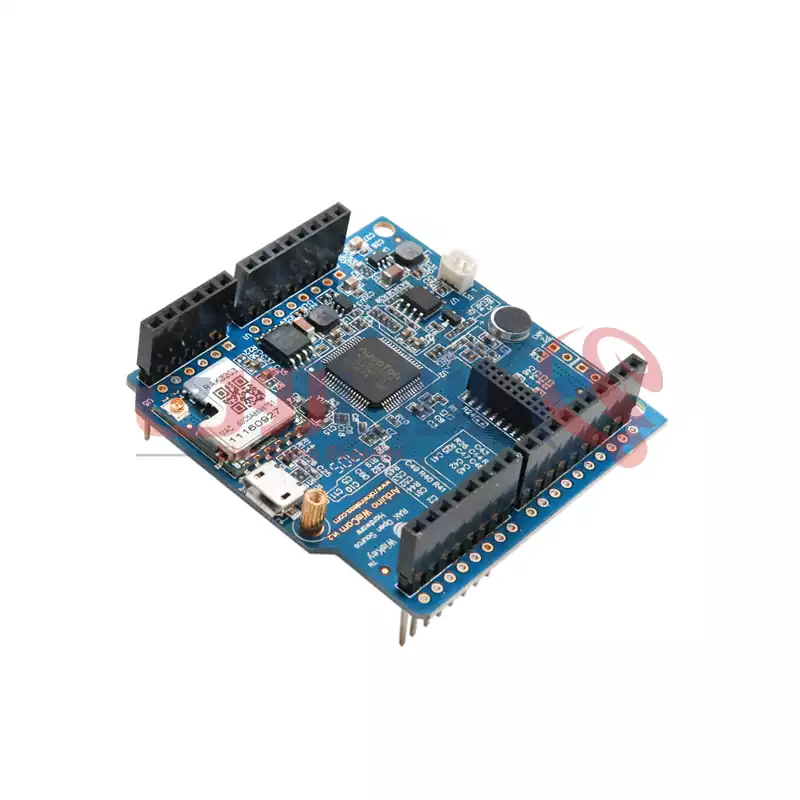

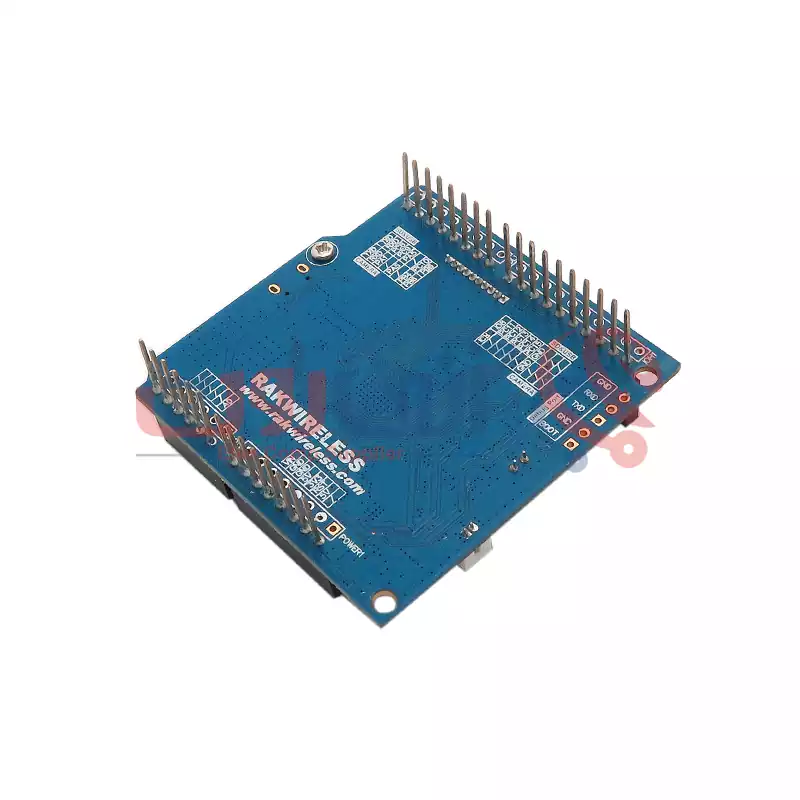

WisCam-Board N32905R3DN

RAK WisCam specifications:

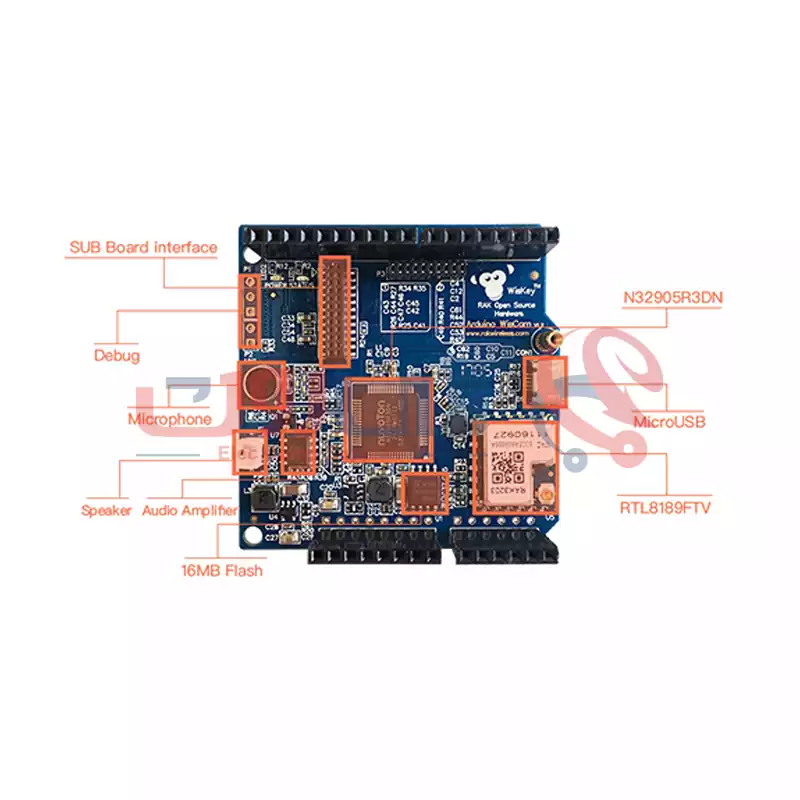

• SoC –  Nuvoton N32905R3DN ARM926EJ processor @ 200 MHz with 8KB internal SRAM, 16KB IBR internal booting ROM, 16Mbit  x16  DDR2 memory

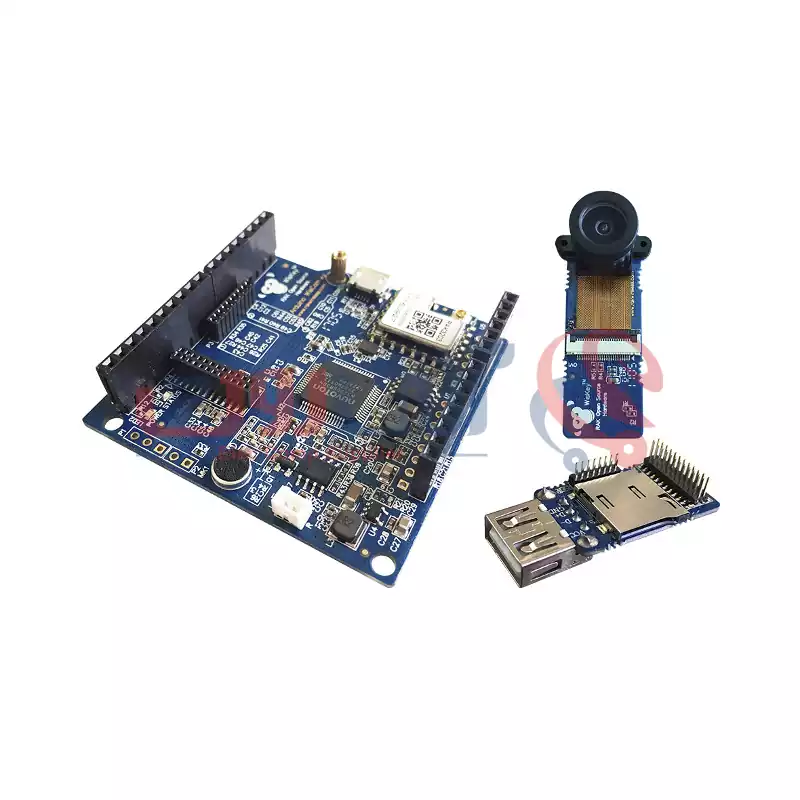

• Storage – 128 MBit SPI flash, included sub-module adds micro SD card
• Connectivity – 802.11 b/g/n WiFi via Realtek RTL8189FTV module

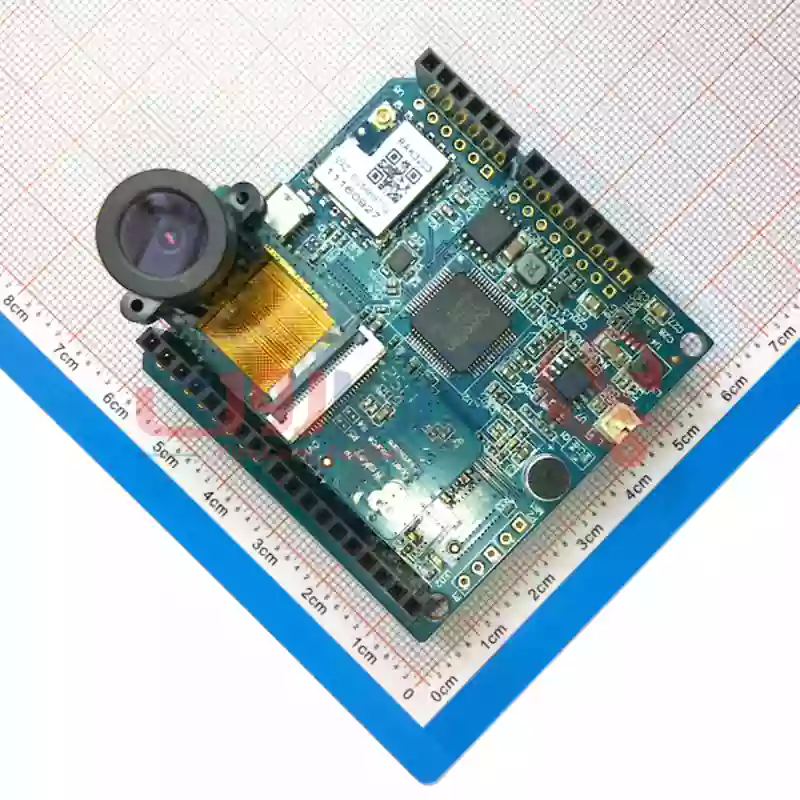

• Camera via sub-module
  • 648×488 pixel VGA CMOS Image Sensor (GC0308); 102° FOV
  • Video –  QVGA (320×240) 30FPS, VGA(640×480) 30FPS, MJPEG encoding
  • Photo – JPEG, 16 bits/pixel – RGB565, 32bits/pixel – ARGB8888

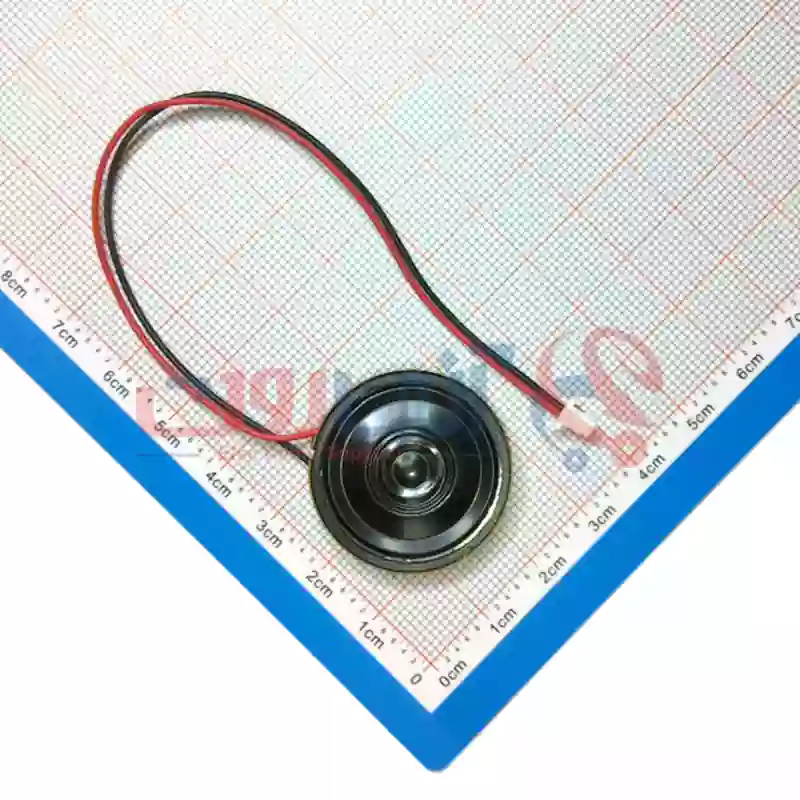

• Audio – 16-bit stereo DAC; built-in microphone, speaker header
• USB – 1x micro USB port for power and programming, USB 2.0 port via sub-module

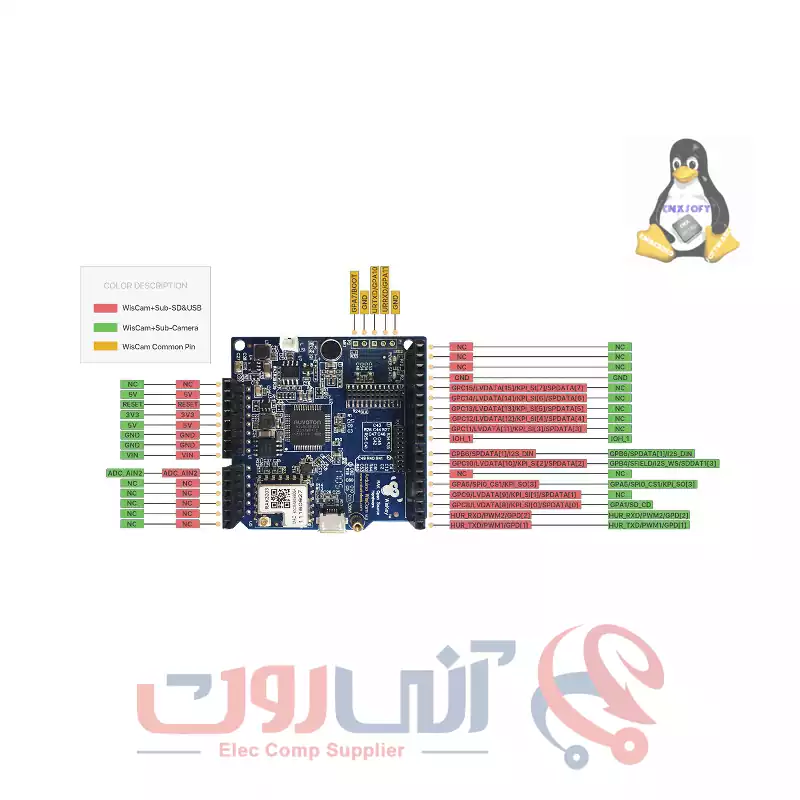

• Expansion – Arduino UNO compatible headers with PWM, I2C, GPIO, ADC, UART, I2S, USB2.0 HS (High-Speed)
• Power Supply – 5V via micro USB port
• Dimensions – 55.61mm x 55.88mm
