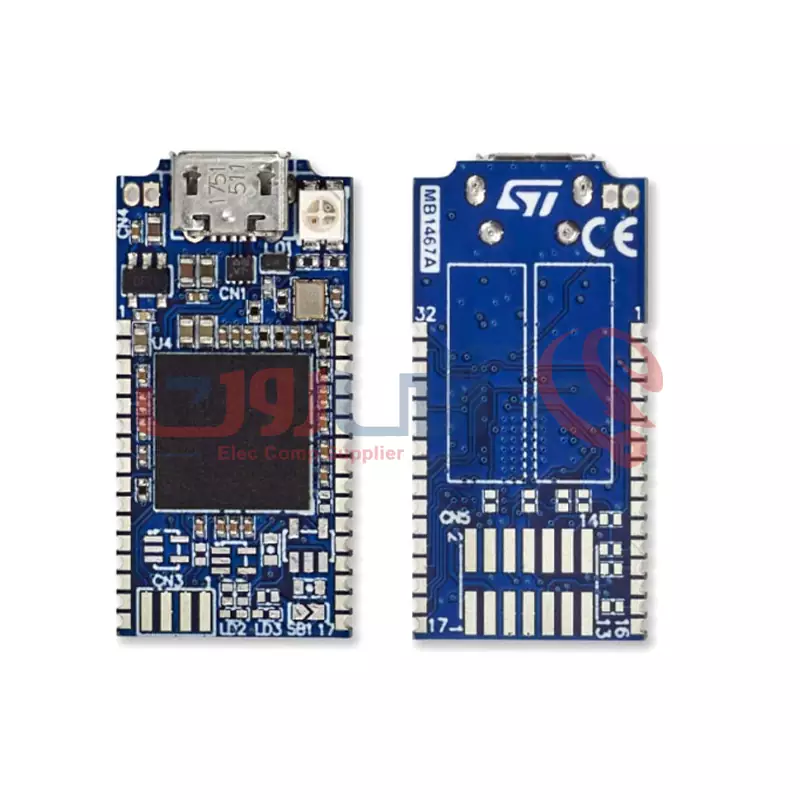

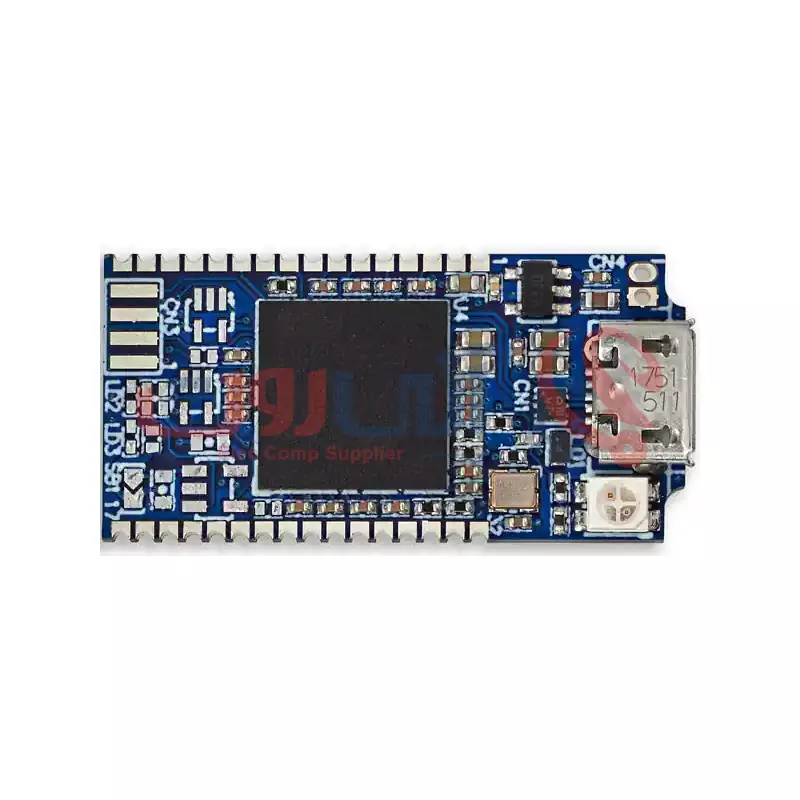

STLINK-V3MODS is a small‑size debugging and programming probe for STM32 microcontrollers
All features

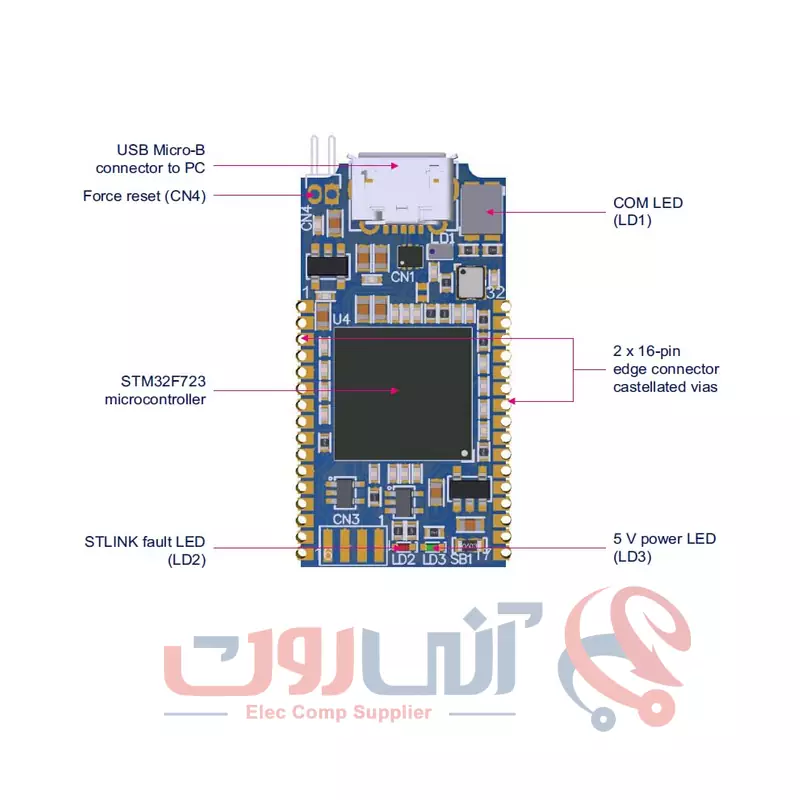

Modular probe with small size: approximately 15 × 30 mm
Direct‑to‑PCB implementation by 2 × 16‑pin 1.27 mm edge castellated vias, with all signals available in the required minimum PCB surface
Self-powered through a USB Micro-B connector
USB 2.0 high‑speed compatible interface
5 V source output capability up to 200 mA
JTAG/SWD (Serial Wire Debug) specific features:
3.0 to 3.6 V application voltage support and 5 V tolerant inputs
JTAG communication support
SWD and SWV (Serial Wire Viewer)
Virtual COM port (VCP) specific features:
3.0 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
VCP frequency up to 15 MHz
Multipath bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
3.0 to 3.6 V application voltage support and 5 V tolerant inputs
Drag-and-drop flash programming
Two color LEDs: communication and power
