NVIDIA® Jetson Orin™ Nano Super Developer Kit

49,500,000 تومانعدد

NVIDIA® Jetson Orin™ Nano Super Developer Kit

ناموجود

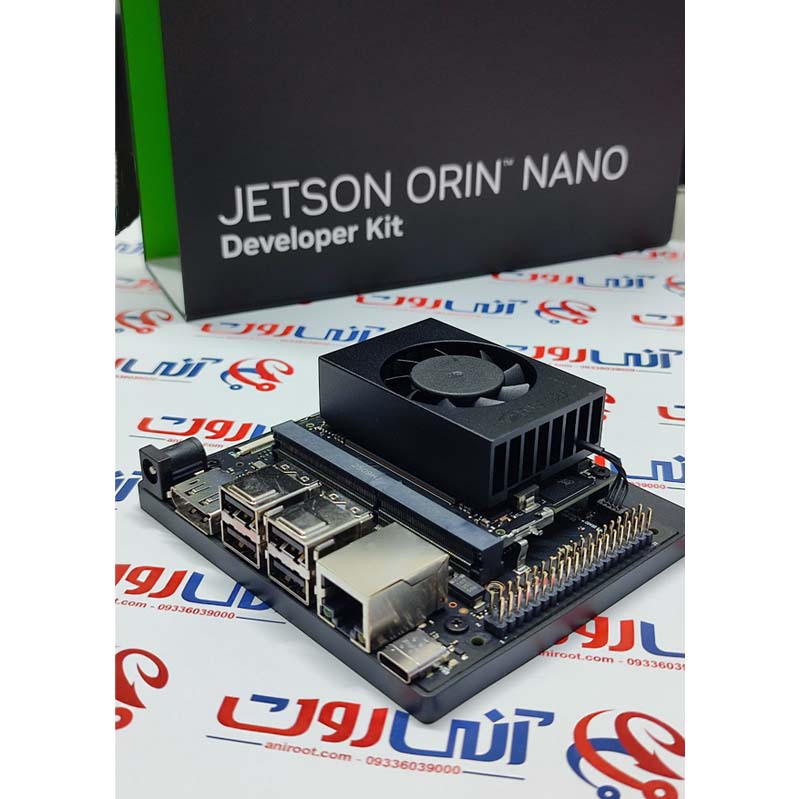

NVIDIA® Jetson Orin™ Nano Super Developer Kit

Feature

Excellent AI Performance for production: low power and low latency with up to 67 TOPS AI performance, featuring an Ampere architecture GPU and a 6-core ARM CPU, which enables multiple concurrent AI application pipelines and high-performance inference.

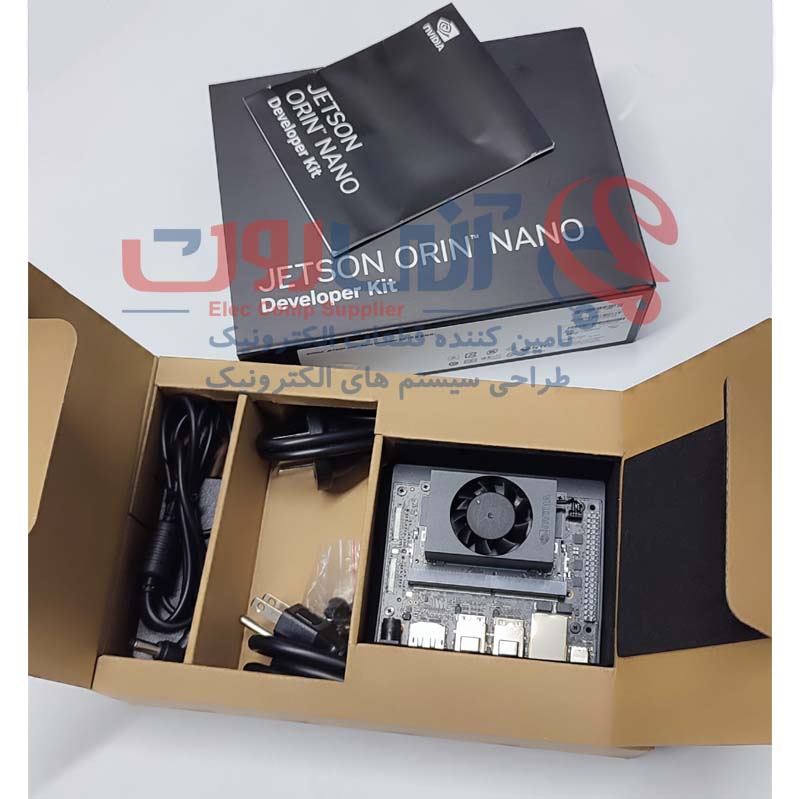

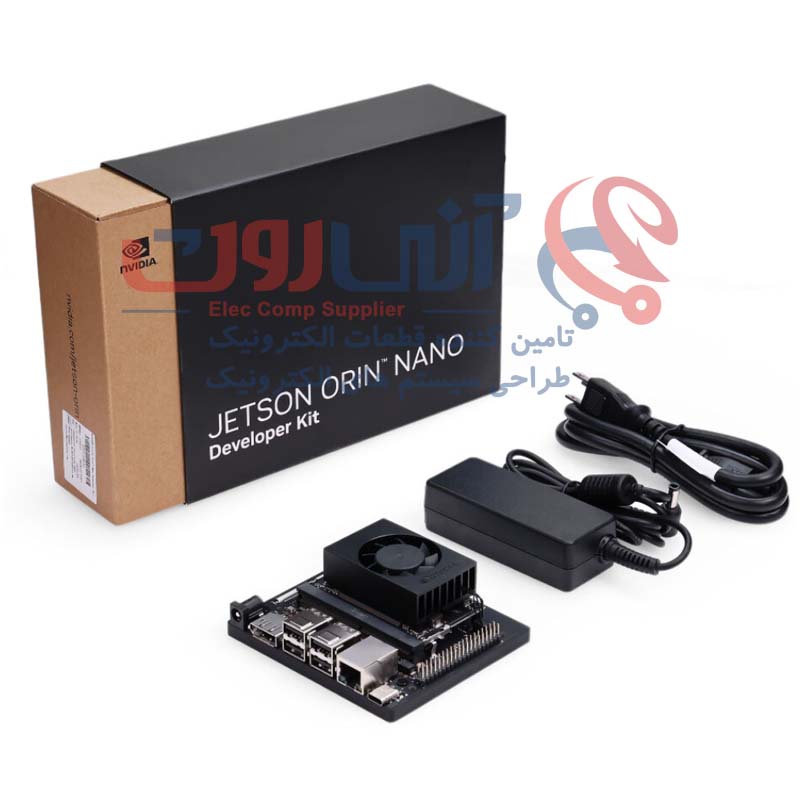

Hand-size edge AI device: compact size at 100mm x79mm x 21mm, includes Jetson Orin™ Nano 8GB module, a heatsink with a fan and a power adapter.
Expandable with rich I/Os: 4x USB 3.2 Gen 2 ports, DP 1.2, M.2 key E with pre-installed Wi-Fi module, 2x M.2 Key M for SSD, microSD slot, 2x MIPI CSI-2 connectors, Gigabit Ethernet, 40-pin GPIO.

Jetson Orin Nano System on Module

AI Performance	Jetson Orin Nano 8GB with SD card slot on module – 67 TOPS
GPU	NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory	8GB 128-bit LPDDR5 102 GB/s
Video Encoder	1080p30 supported by 1-2 CPU cores
Video Decoder	1x 4K60 (H.265) \| 2x 4K30 (H.265) \| 5x 1080p60 (H.265) \| 11x 1080p30 (H.265)
Power	7W-25W

Carrier Board
Storage		1x microSD slot (UHS-1 cards up to SDR104 mode)
Networking	Ethernet	1x Gigabit Ethernet (10/100/1000M)
PCIe	M.2 KEY M	4x PCIe GEN3 2x PCIe GEN3
PCIe	M.2 KEY E	1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module); PCIe (x1), USB 2.0, UART, I2S, and I2C
I/O	USB	4x Type A USB 3.2 Gen2 1x Type C for UFP
	CSI Camera	2x MIPI CSI-2 (22pin)
	Display	1x DP 1.2 (+MST) connector
	Fan	1x 4 pin Fan Connector (5V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header 1x 12-Pin Control and UART header
	RTC	RTC 2-pin, supports CR1220 but not included
Power Supply		9V-19V DC
Mechanical (W x D x H)		100mm x 79mm x 21mm
Product Weight		0.176 kg

Sold out

شناسه محصول: 22AA-JetsonOrinNanoSuper_RN22 دسته ها: بردهای توسعه امبدد برچسب ها: Jetson, NVIDIA, هوش مصنوعی

توضیحات

AI Performance	Jetson Orin Nano 8GB with SD card slot on module – 67 TOPS
GPU	NVIDIA Ampere architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory	8GB 128-bit LPDDR5 102 GB/s
Video Encoder	1080p30 supported by 1-2 CPU cores
Video Decoder	1x 4K60 (H.265) \| 2x 4K30 (H.265) \| 5x 1080p60 (H.265) \| 11x 1080p30 (H.265)
Power	7W-25W

Carrier Board
Storage		1x microSD slot (UHS-1 cards up to SDR104 mode)
Networking	Ethernet	1x Gigabit Ethernet (10/100/1000M)
PCIe	M.2 KEY M	4x PCIe GEN3 2x PCIe GEN3
PCIe	M.2 KEY E	1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module); PCIe (x1), USB 2.0, UART, I2S, and I2C
I/O	USB	4x Type A USB 3.2 Gen2 1x Type C for UFP
	CSI Camera	2x MIPI CSI-2 (22pin)
	Display	1x DP 1.2 (+MST) connector
	Fan	1x 4 pin Fan Connector (5V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header 1x 12-Pin Control and UART header
	RTC	RTC 2-pin, supports CR1220 but not included
Power Supply		9V-19V DC
Mechanical (W x D x H)		100mm x 79mm x 21mm
Product Weight		0.176 kg
