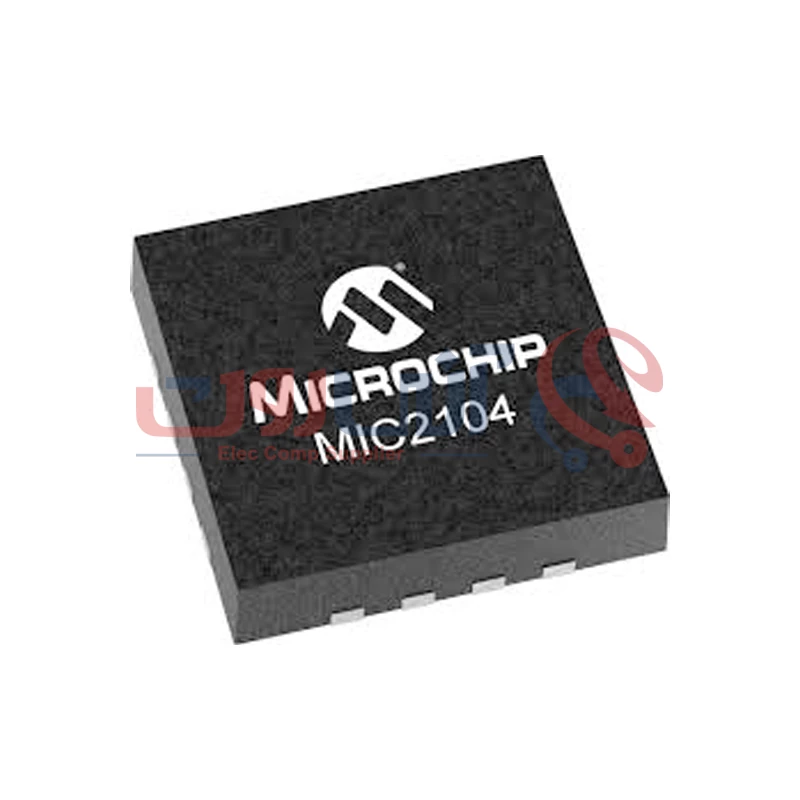

MIC2104YML-TR
255,000 تومان
MIC2104YML-TR MICROCHIP
200kHz~600kHz Buck 1 WQFN-16-EP(3×3) DC DC Switching Controllers ROHS
DATA SHEET: C105694.Pdf
برای سفارش تماس بگیرید.
The MIC2103/04 are constant-frequency, synchronous buck controllers featuring a unique adaptive ON-time control architecture. The MIC2103/04 operates over an input supply range from 4.5V to 75V and can be used to supply up to 15A of output current. The output voltage is adjustable down to 0.8V with a guaranteed accuracy of ±1%. The device operates with programmable switching frequency from 200kHz to 600kHz.
Hyper Light Load™ architecture provides the same high-efficiency and ultra fast transient response as the Hyper Speed Control architecture under the medium to heavy loads, but also maintains high efficiency under light load conditions by transitioning to variable frequency, discontinuous-mode operation.
The MIC2103/04 offers a full suite of protection features to ensure protection of the IC during fault conditions. These include under-voltage lockout to ensure proper operation under power-sag conditions, internal soft-start to reduce inrush current, fold-back current limit, “hiccup” mode short-circuit protection and thermal shutdown.
